Waterway – Iron Might, 48 Frame Pump, 1/16HP, 230V, 2 Speed – 3410020-1E

I Heart Hot Tubs > > Parts > > Spa Pumps > > Waterway – Iron Might, 48 Frame Pump, 1/16HP, 230V, 2 Speed – 3410020-1E

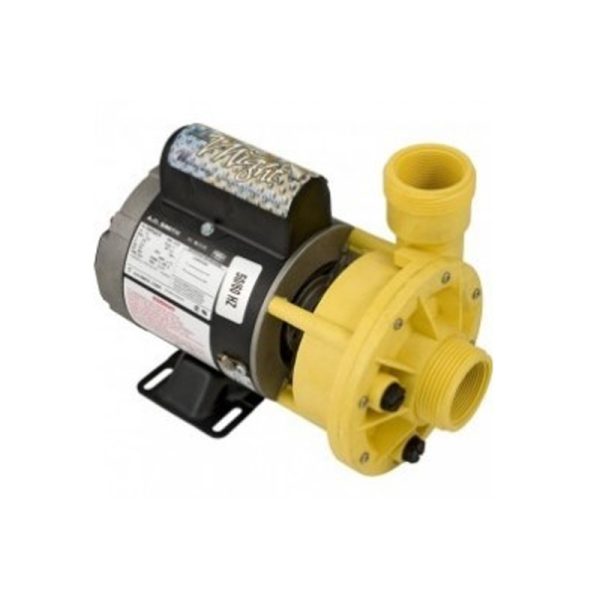

Waterway - Iron Might, 48 Frame Pump, 1/16HP, 230V, 2 Speed - 3410020-1E

$249.87

The Iron Might is the ultimate in efficiency. It uses only 0.63 Amps while offering twenty-four hour circulation, pumping 40 gallons per minute (GPM).

Spa Pump Features:
Side discharge for optimum performance
24 hour circulation
48 frame proven design
1-1/2″ union in/out
Uses less than an amp of power
Dimensions (H x W x L): 8.25″ x 6.5″ x 12″

Complete Pump Type Circulation Pump
Speed 1 Speed (1-Spd)
Motor Voltage 230v
Drain Plug Location 7,10 o`clock
Pump to Motor Foot Types 15
Suction Style Center
Suction Connection (Physical Dimension) 1-7/8″id, 2-7/16″od
Suction Connection Type Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Suction Pipe Size 1-1/2″
Discharge Style Side
Discharge Connection (Physical Dimension) 1-7/8″id, 2-7/16″od
Discharge Connection Type Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Pipe Size 1-1/2″
Horsepower 1/15hp
Motor Frame 48 Frame Thru-Bolt
Motor Amperage/Wattage 0.63A
Manufacturer Waterway
Pump Model Iron Might
Volute Fastening Type 8 Screws

Details

Identical to:

  • WWP34100201E
  • 34100201E
  • 806105066381
  • 3410020-1E

Waterway Iron Might Circulation Pump 3410020-1E

This item is a Genuine Waterway Iron Might Pump and Motor. We do not sell refurbished, rebuilt or mix and match pump and motors. All Waterway Iron Might pumps sold come with a 1 year manufacturers warranty.
