Laing Ecocirc E10, 3/4″ Barb Circulation Spa Pump, 115V – 73989, 6500-460

$199.99

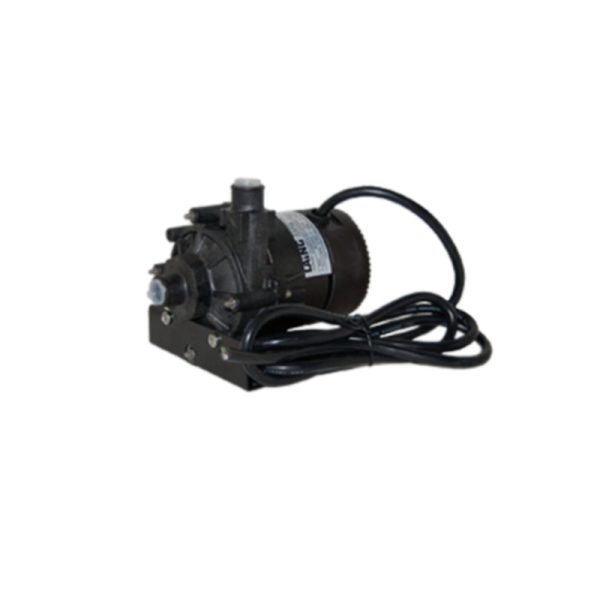

The Laing E-10 pump is compact and lightweight, less than 5 lbs. It is whisper quiet, highly efficient and designed with the latest EC (electronically commutated) technology. The Laing E-10 is specifically designed for water circulation and can be mounted horizontally or vertically with motor end down. It is equipped with a high density ceramic bearing ball and graphite impeller that allows for continuous operation. Embedded microprocessor control gives protection against dry run conditions. Available in 3/4″ and 1” barb suction and discharge and 3/4″mpt suction and discharge models.

10GPM 50/60HZ

Replacement Option For:
AI #1-00-0136A / MFG # LHB07100139 73989
AI #1-00-0136 / MFG # 909-NH-14 6848
AI #1-00-0164 / MFG # 909-NH-26 6860
AI #1-00-0173 / MFG # 909-NH-18 6865
AI #1-00-0177 / MFG # 1212-NH-26 6958
MFG # E10-NSHN1W-19

Out of stock

Details

Replaces

  • SM909NHW-14 3/4′ Barb 115V (2-Speed)
  • SM909NHW-14 3/4′ Barb 115V
  • SM909NHW-18 3/4′ Barb 115V
  • SM909NHW-26 3/4′ Barb 115V
  • SM1212NHW-26 3/4′ Barb 115V
  • E10-NSHN1W-19 3/4″ Barb 115V

The Ecocirc auto and vario were designed with the highly efficient electronically commutated permanent magnet motor (ECM technology).

Our revolutionary pump is designed to consume 40% less energy. Added variable speed technology offers further power savings.

The E10 pump is compact and lightweight, less than 5 lbs. It is whisper quiet and programmable designed with the latest EC technology.

The flow rate dependent on the differential pressure control, adjusts the pump performance continuously and automatically to the requirements of the system.

Features:

  • Get 98 watts of performance for only 65 watts of power
  • Domestic or international 50 or 60Hz same high flow
  • Compact Design
  • Consumes 40% less energy
  • Lightweight, less than 5 lbs
  • Open Impeller – Resistant to Clogging
  • Dry Run Protection

Applications:

  • Water Circulation
  • Aquarium Circulation
  • Chiller Systems
  • Saltwater and Freshwater
  • Ozone Treatment

Pump

  • Capacities: 15 GPM
  • Max Head: 20
  • Pipe Connections: and 1 Barb Suction and Discharge
  • MPT Suction and Discharge
  • Maximum Working Pressure: 50 PSI
  • Maximum Temperature: 140 F
  • Rotation: counter clockwise when viewed from the motor end

Motor

  • Electronically Commutated AC/DC/AC Spherical Motor
  • Canned Spherical Type Motor
  • 115 Volt 62 Watts 60 Hz, 3100 RPM
  • 230 Volt 71 Watts 60 Hz, 3200 RPM
  • Automatic Overload Protection
